2E Gaming PSU Solid Power Pro (750W), >85%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 4xPCIe 8pin(6+2), 1x12VHPWR, Semi Modular

კოდი: 2E-SP750BRSMII-120

აღწერილობა დამატებითი ინფორმაცია

-უკან დაბრუნება

შემდეგი

ჩამოტვირთვა

ტექნიკური პარამეტრები 2E Gaming PSU Solid Power Pro (750W), >85%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 4xPCIe 8pin(6+2), 1x12VHPWR, Semi Modular:

მთავარი მახასიათებლები

მთავარი მახასიათებლების სრული სია

Application	gaming/mining
Power	750 V
Form Factor	ATX
Type PFC	active
Number of fans	1
Еfficiency	85 %
80 PLUS Certificate	bronze
The modular connection system	напів модульний

Key Features

Type	for PC
Application	gaming/mining

Power

Power	750 V
Form Factor	ATX

Specification

Type PFC	active
Number of fans	1
Fan diameter	120 mm
ATX 12V standard.	3.1 /Gen 5.1
Еfficiency	85 %
80 PLUS Certificate	bronze
Input voltage	220 V - 240 В
Input current	10 A
Frequency	50 Hz

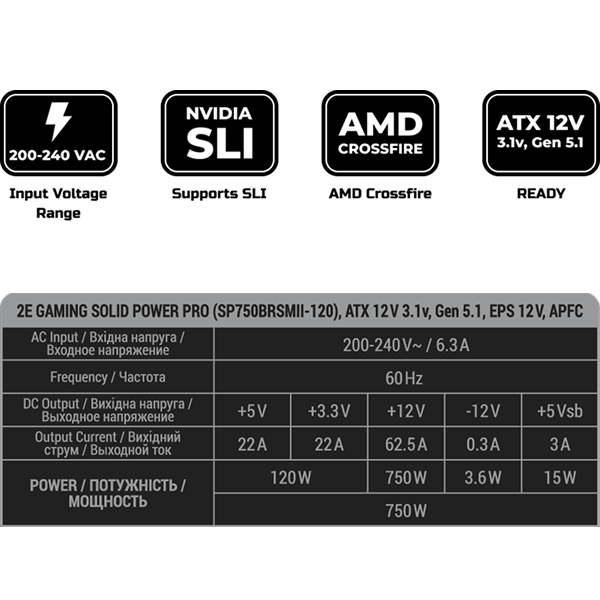

Combined load	3,3В 22А; +5В 22А; +12В 62,5А, -12В 0,3А; +5ВSB 3А

Power connectors

The modular connection system	напів модульний
Connectors	2 x CPU 8(4+4) pin, 600+150мм
	6 x SATA, (400+150+150мм)*2 модульный
	4 x PCI-E 8(6+2) pin, (500+150мм)*2 модульный
	1 x 12+4 Pin PCI-E Gen 5.1 600мм
	1 x MB 24(20+4) pin, 550мм
	3 x Molex, 400+150+150мм модульный

Additionally

Security	UVP (Under Voltage Protection)
	OVP (Overvoltage Protection)
	SCP (Short-Circuit Protection)
	OPP (Over Power Protection)
	OCP (Защита от перегрузки по току)
Certificates	CE
	CB
	EAC
	RoHS

Physical

Dimensions (HxWxD )	86 x 140 x 150 mm
Length of cable	1.2 m
The weight	2.23 kg

Power: 750 V; Form factor: ATX; Number of ventilators: 1; Efficiency: 85 %; Modular system connection: არსებობს;

მიუწვდომელა

* საშუალო ფასი ბაზარზე

აღწერა 2E Gaming PSU Solid Power Pro (750W), >85%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 4xPCIe 8pin(6+2), 1x12VHPWR, Semi Modular

Power supply units of the 2E GAMING Solid Power Pro series:

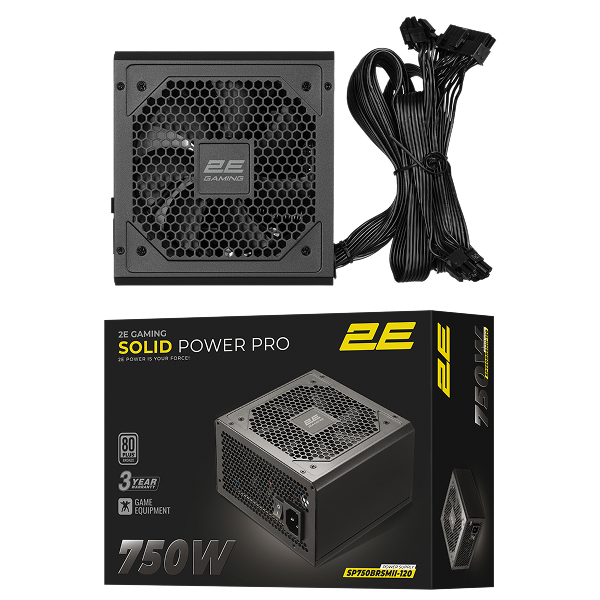

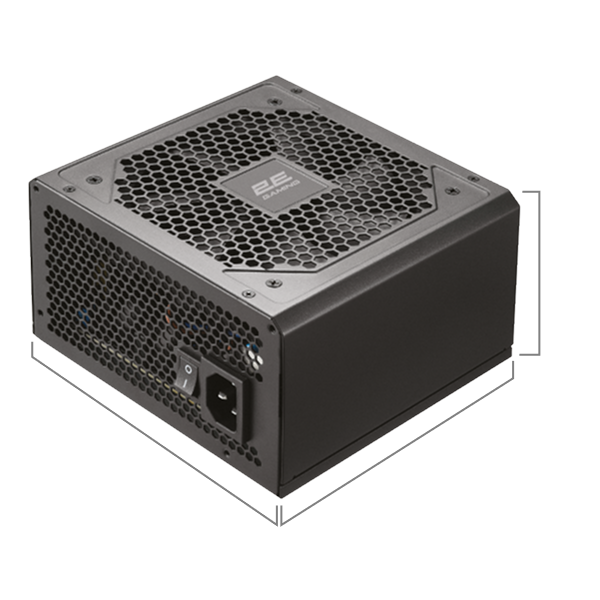

ATX format, black steel case. Standard dimensions are 140x150x86 mm. Compatible with the vast majority of common classic form factors of cases for PCs;
update - input voltage range 200-240V. Stable power supply on the +12V common line without overloads on the input current;
with a powerful single + 12V bus. This feature of the circuitry is ideal for future component updates, guarantees a stable power supply voltage for the processor and video adapter;
100% compatible with AMD, INTEL components and support modern standards ATX 12V 3.1v, Gen 5.1;

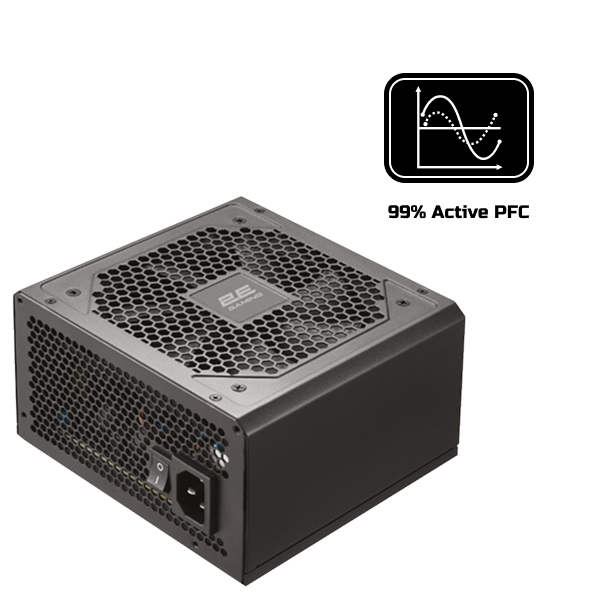

in stock APFC is an active reactive power compensation method with a maximum efficiency ratio of up to 99.9% for uninterrupted operation and stable load of the power supply unit with a high energy efficiency index. This is a safe operation of the system with a low level of noise and heat generation, minimal fluctuations in the power supply. The use of an active reactive power compensation method contributes to the growth of energy efficiency with a decrease in the electromagnetic field, which prevents the formation of a reverse current;

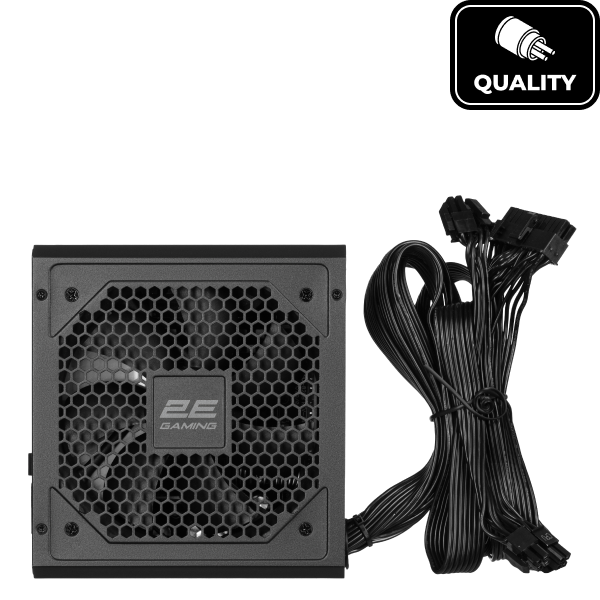

update – the base and body components have been changed and improved. High-quality heat-resistant Taiwanese capacitors are used for stable operation at high temperatures and voltage;
special electromagnetic error filters are available to optimize system operation;

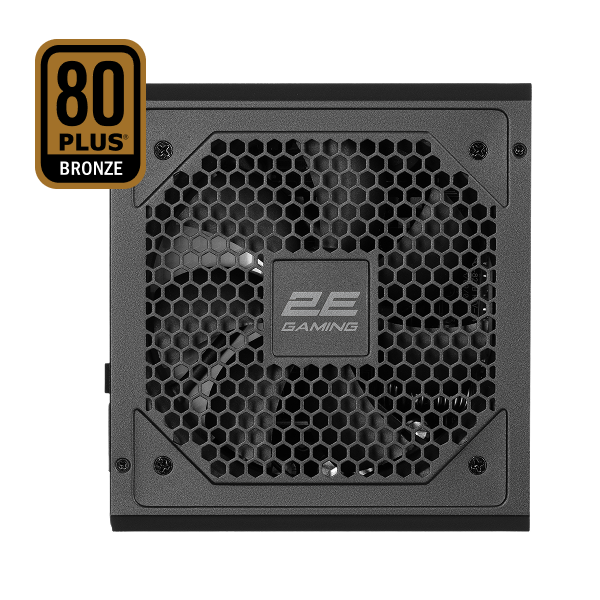

certified 80+ Bronze. Efficiency of 85%, 88%, 85% at 20%, 50% and 100% load, which significantly reduces the total system power consumption, current leakage, overheating, as well as high-frequency noise figures and fan noise level;

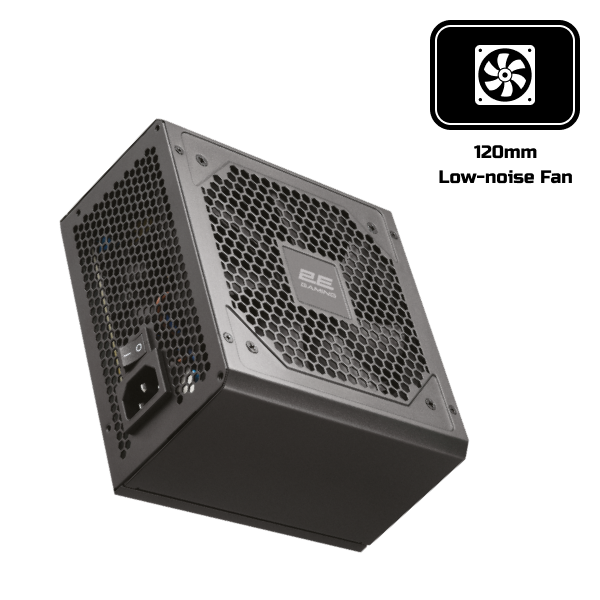

with effective cooling of the component base: active - with the help of a quiet 120mm fan and passive - with the help of a built-in radiator;

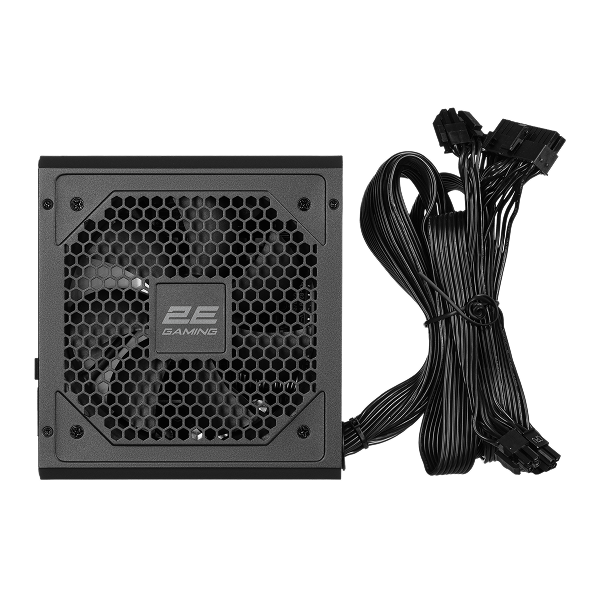

have the optimal length, configuration and arrangement of cables. Connection is semi-modular;
with flat black cables: convenient, reliable, resistant to mechanical damage, elastic for easy placement, layout in the case;
have guaranteed protection: from overcurrent (OCP), from undervoltage (UVP), from overvoltage (OVP), from overload (OPP), from short circuit (SCP).
